When Boundaries Disappear, Possibilities Multiply.

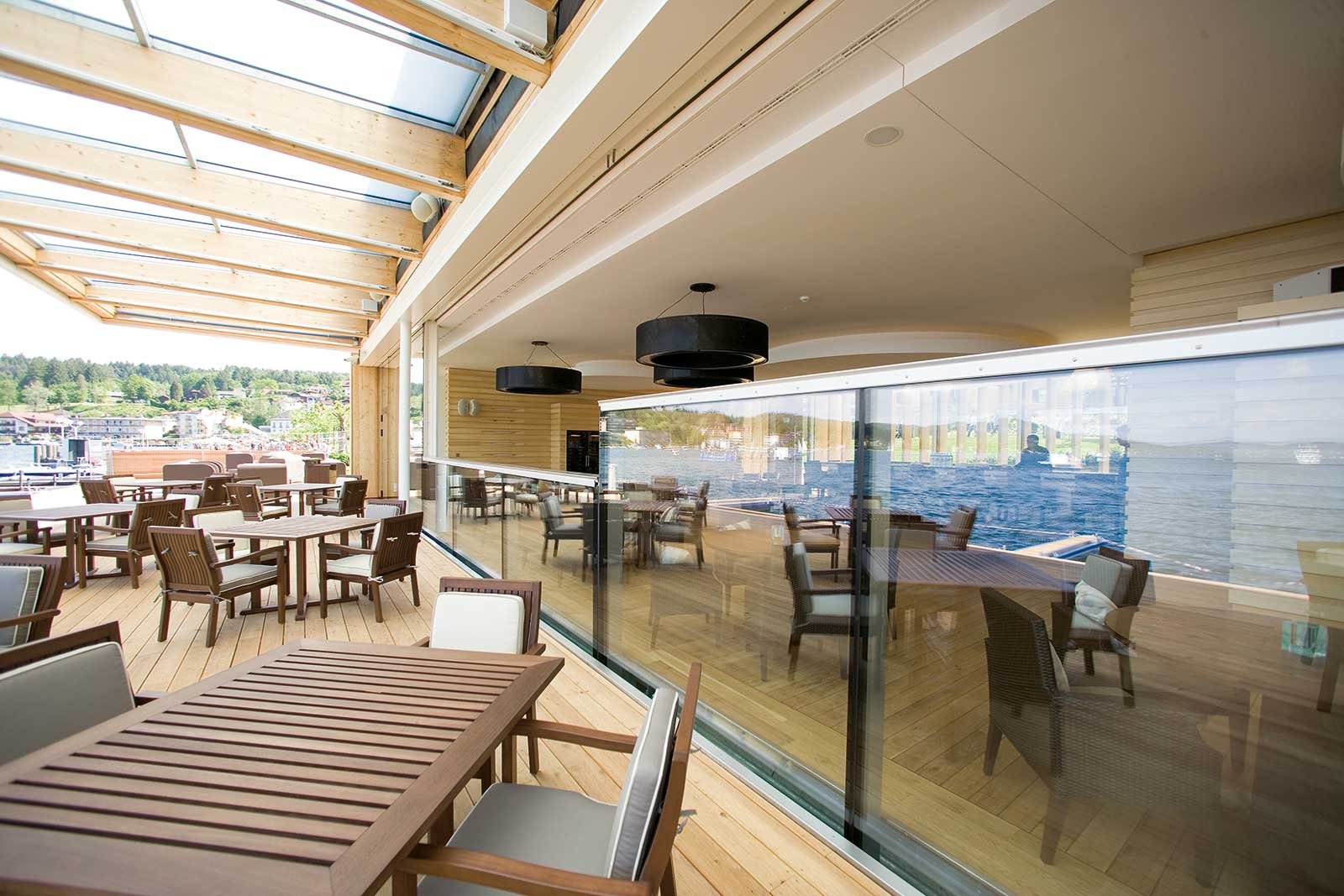

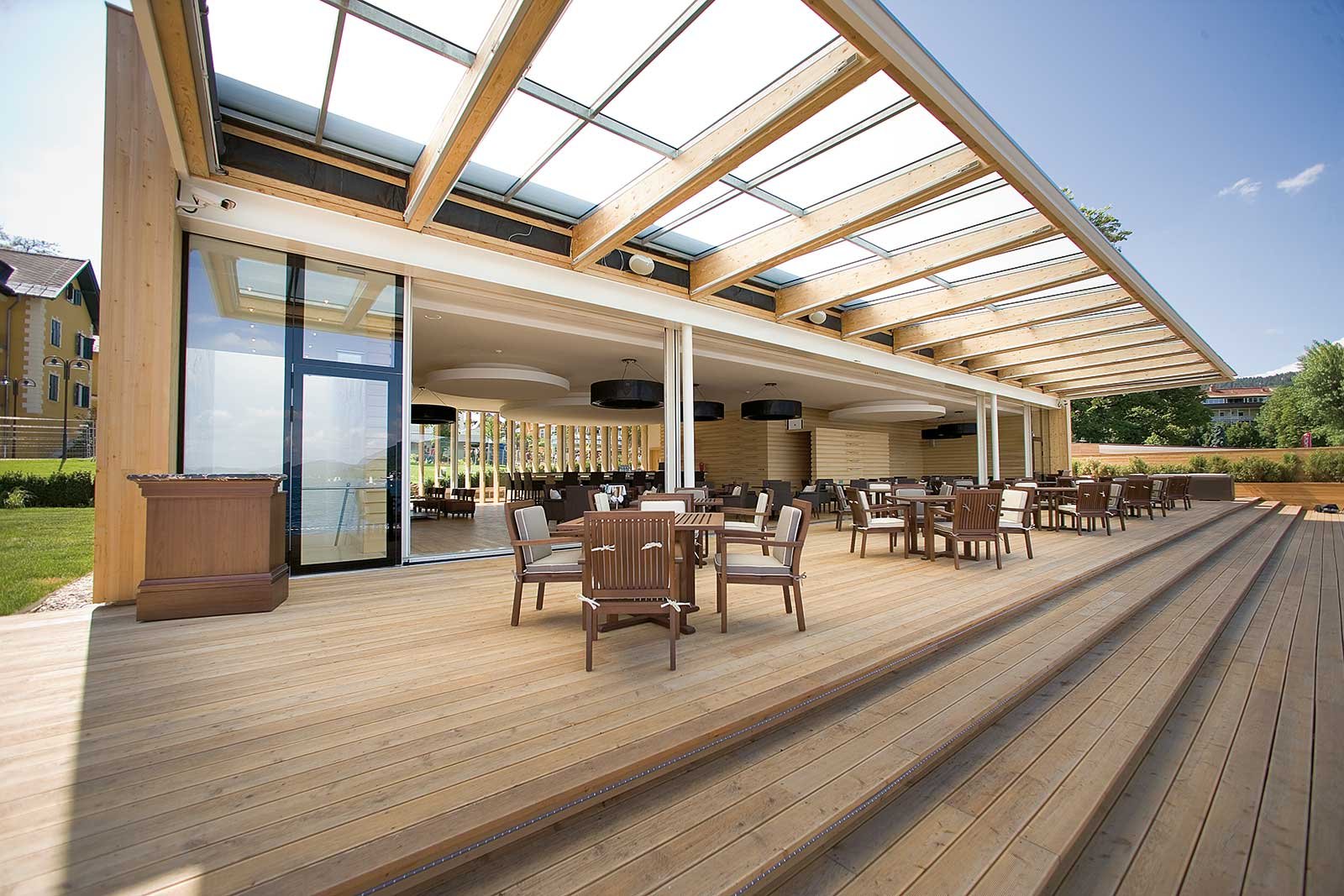

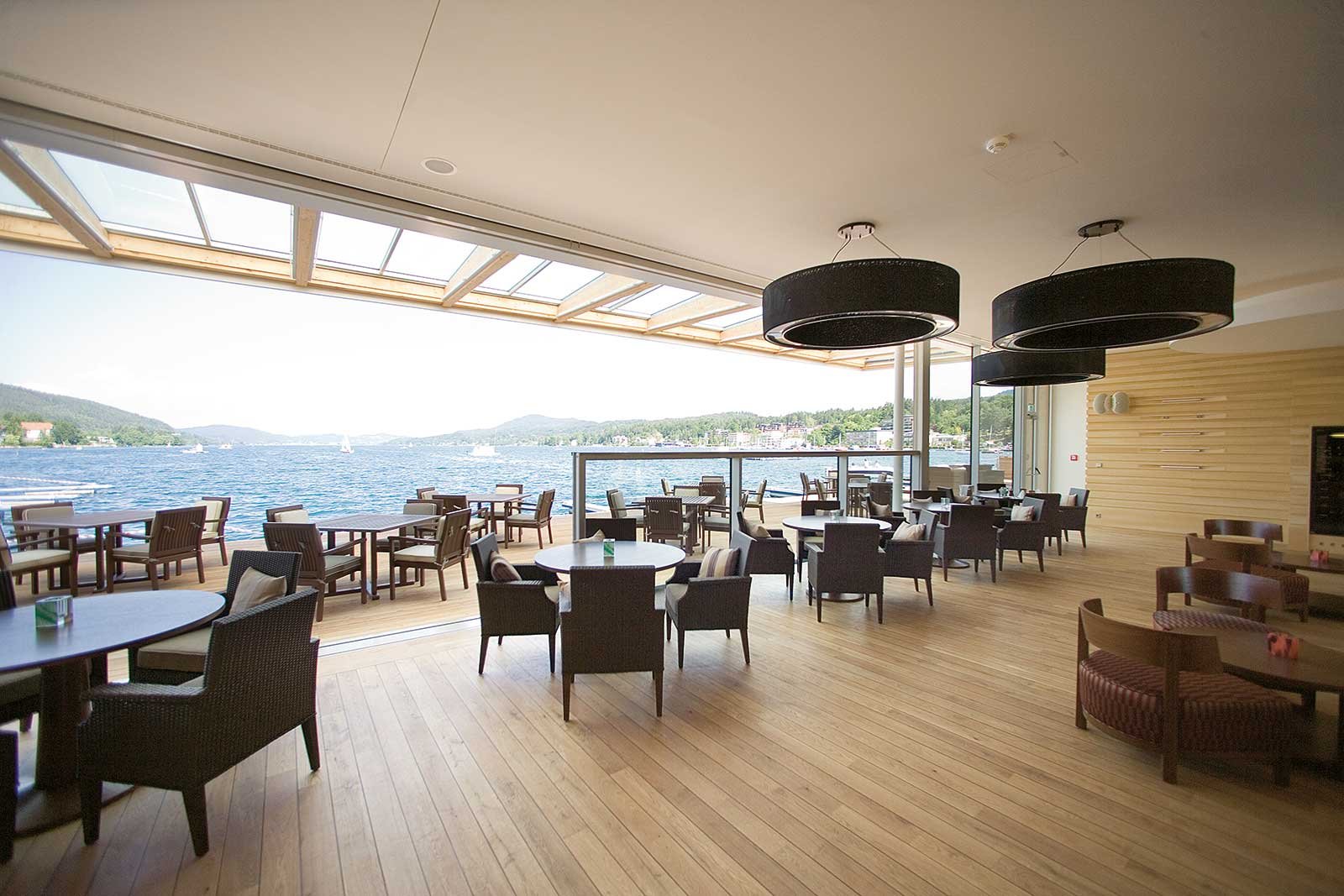

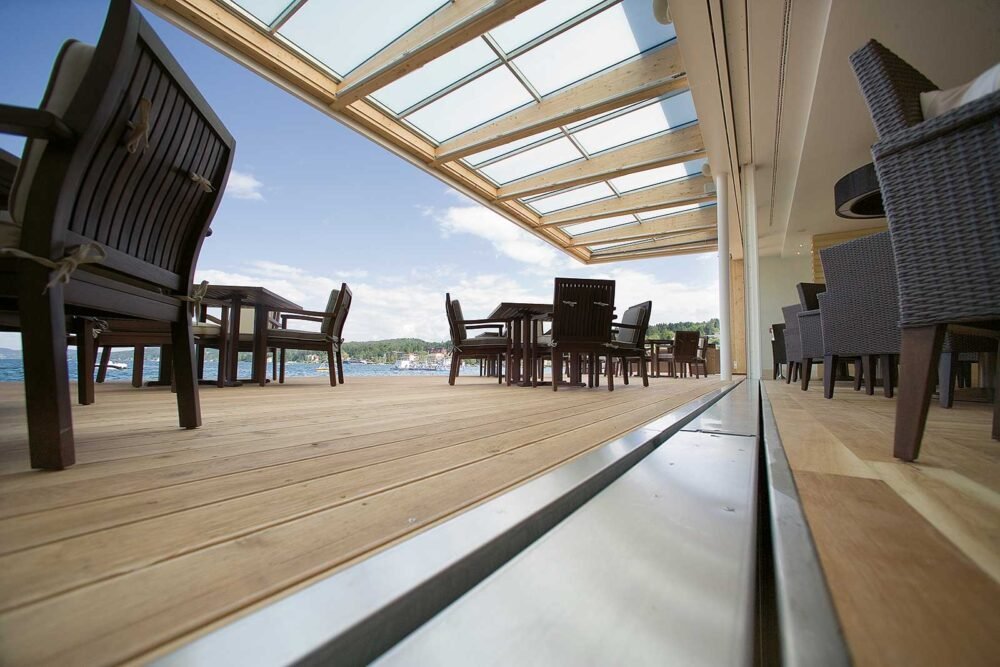

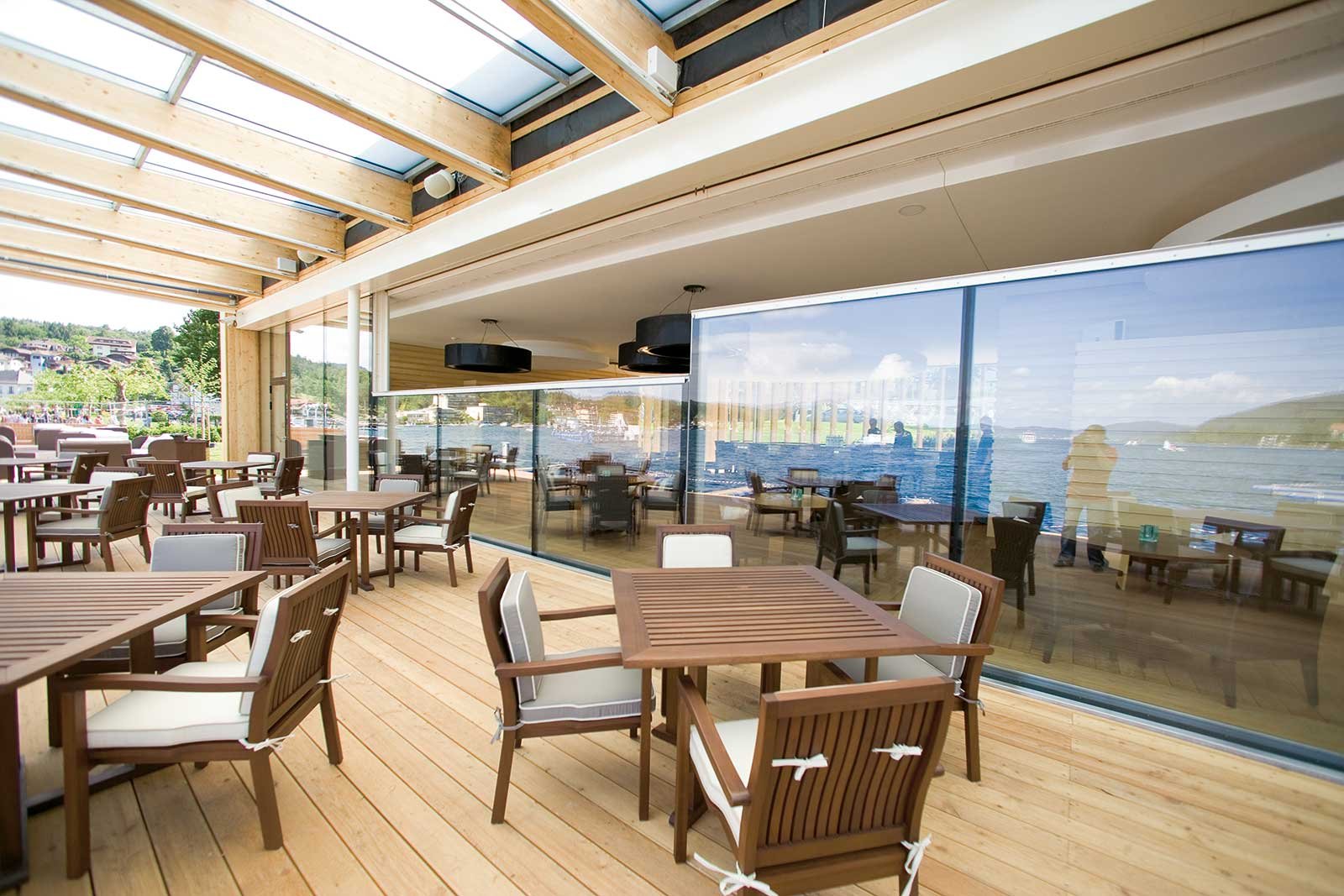

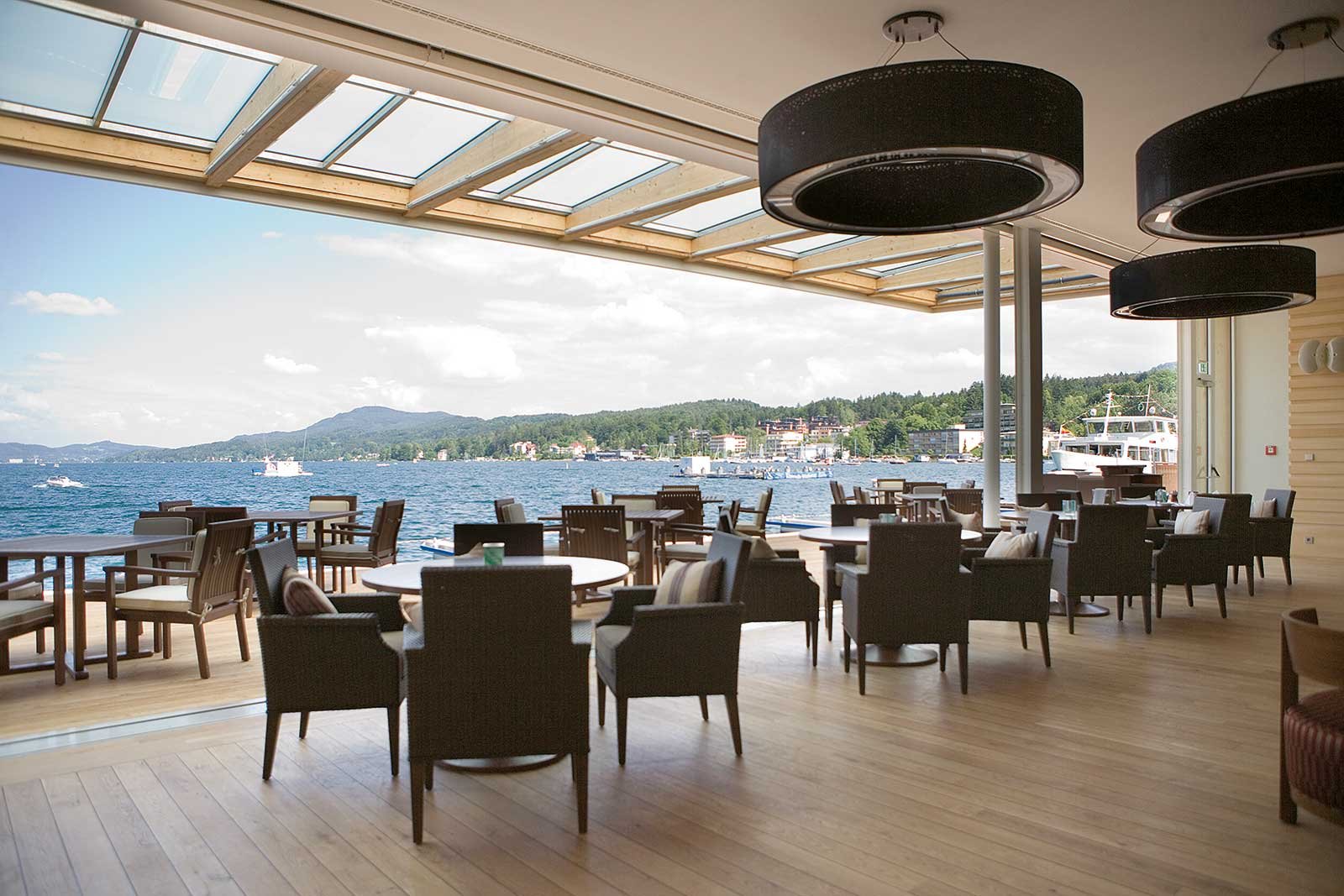

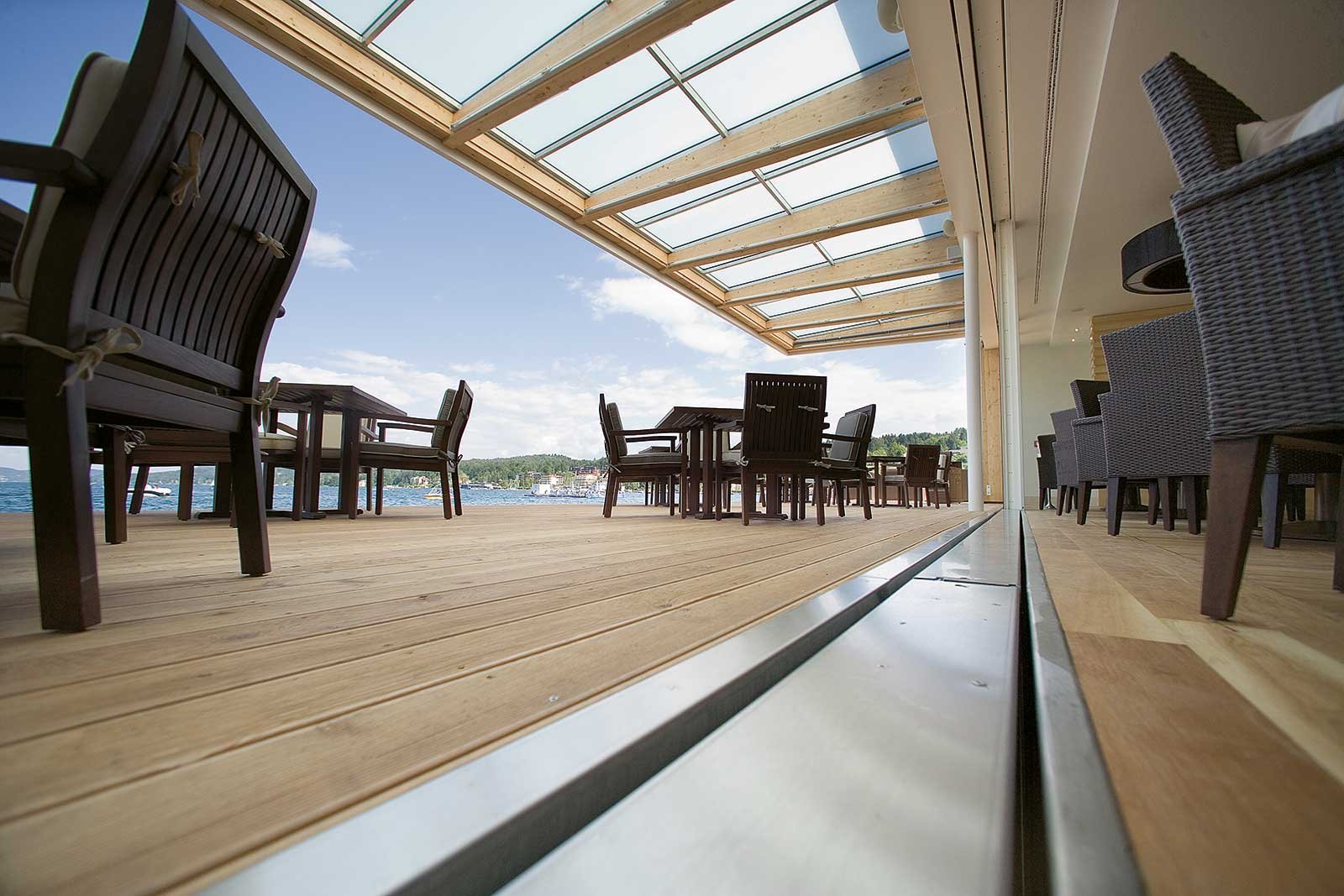

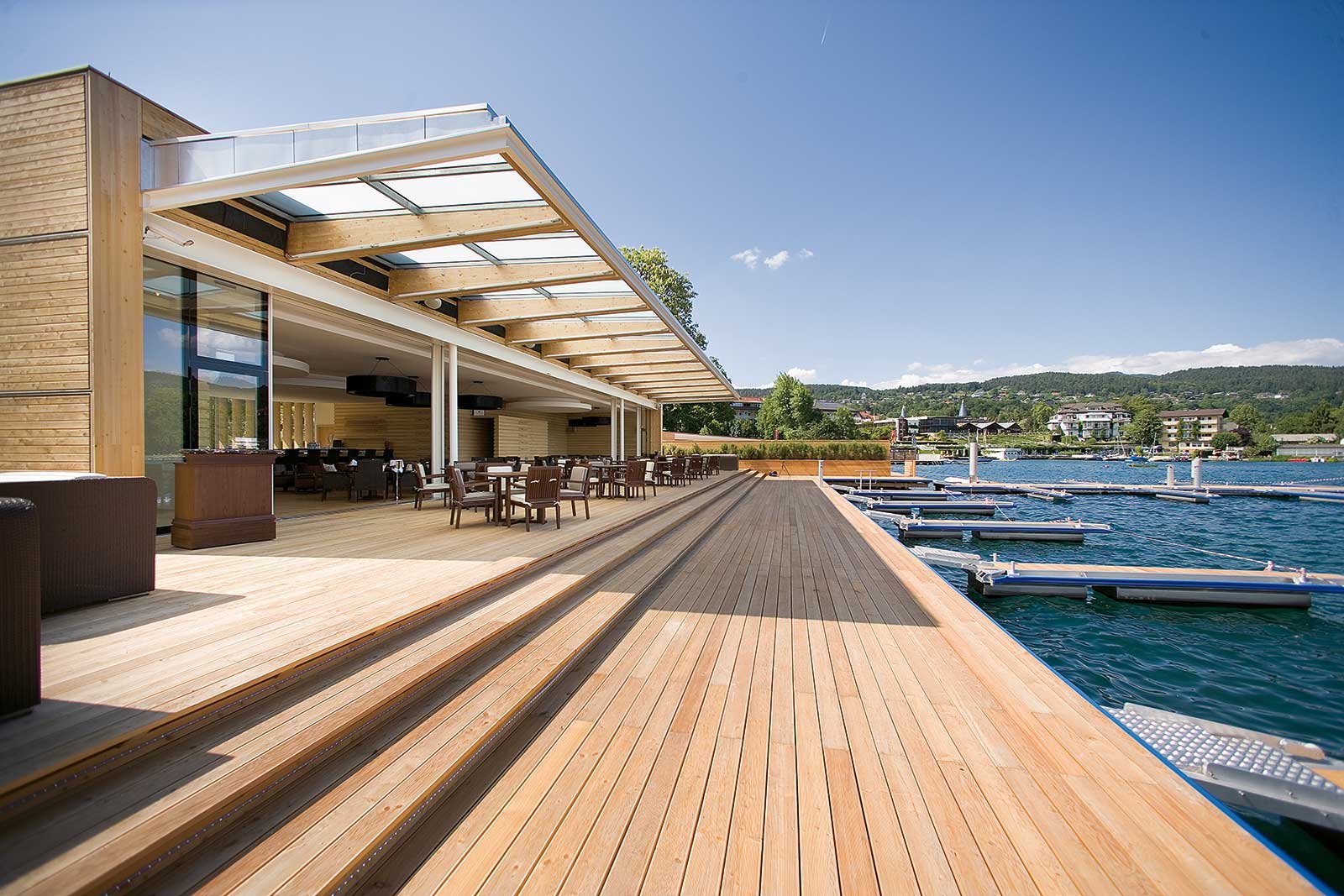

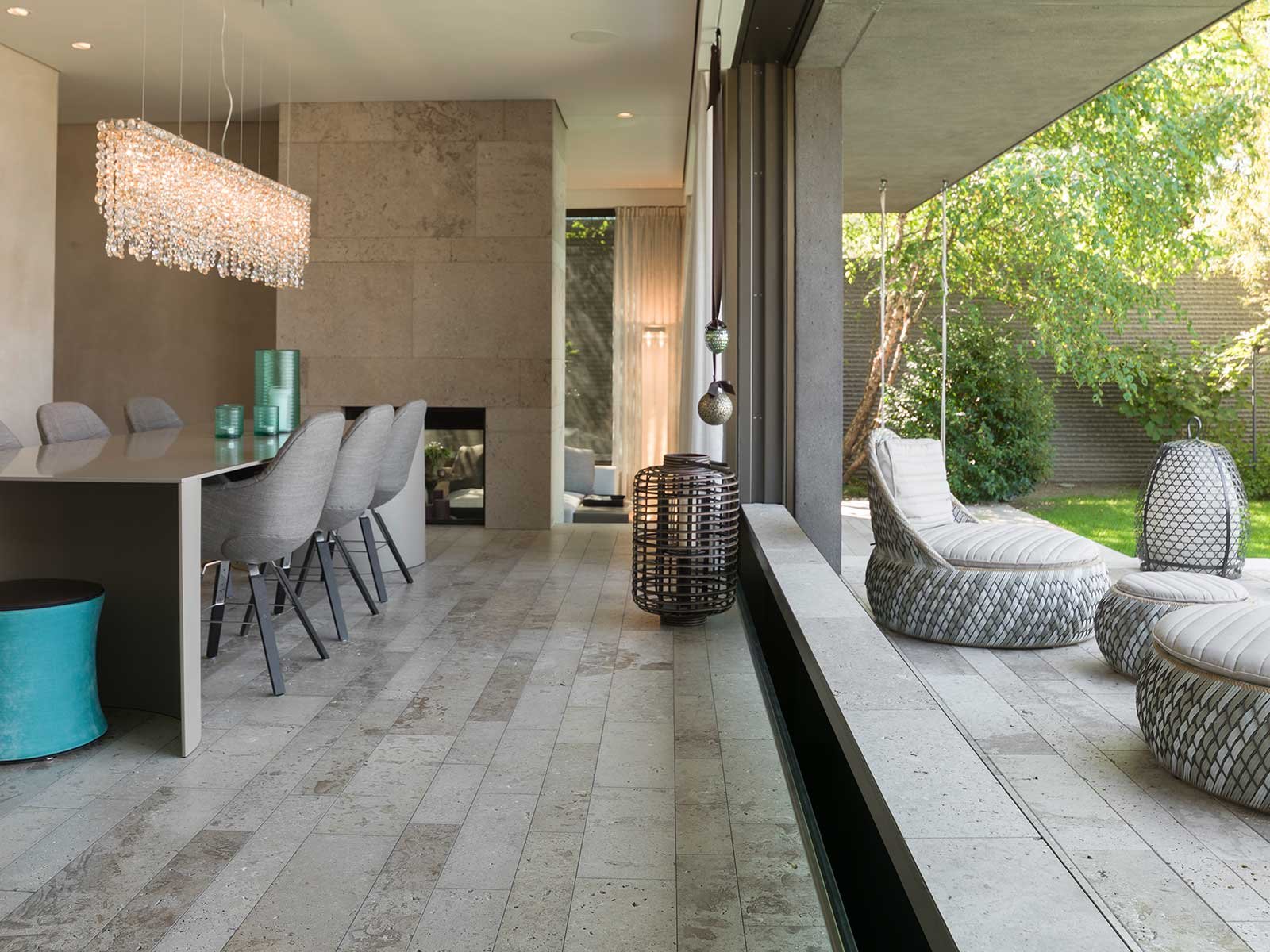

While the SF XL operates on the same core principle as the SF 90, it is purpose-built for larger, more dramatic applications. A precision-engineered floating frame allows the glass to descend smoothly until it disappears fully into the floor — a breathtaking architectural reveal.
The SF XL accommodates expansive dimensions of up to 40 feet wide by 20 feet tall, with the added ability to form custom corners at any angle. This system empowers limitless creative expression, free from conventional constraints.
Its innovative vertical-opening design can also be seamlessly integrated with hinged or sliding doors within the glass face, unlocking endless design possibilities for both function and form
Key Features
Massive retractable glass panels up to 40′ wide × 20′ tall
Engineered to support panels up to 3.5 tons (7,700 lbs)
Frameless exterior design — glass meets edge with no visual interruption
Motorized + counterweighted system (silent and maintenance-free)
Built to perform in extreme climates, including Canadian winters
Where It Belongs
Modern estates & waterfront residences
Ultra-luxury hospitality spaces
Galleries, car pavilions, and glass showrooms
Custom villas or multi-million dollar new builds
Exclusively Available in Canada Through Design Conceptuals
As the official Canadian partner of HIRT, Design Conceptuals provides full-service support — from concept and specification to delivery and coordination — bringing this elite system to North American projects with precision and care.
Reviews
There are no reviews yet.
Be the first to review “HIRT Kinetics® SF XL” Cancel reply
Max. Height
6 m
Max. Width
12 m
Max. Surface Area
40 m2
Max. Weight
3,5 t
Max. Glass Thickness
70 mm
Installation Depth Mounting Frame
313 mm
Installation Depth Sash
219 mm
Opening Direction
Down
Insulation
Air permeability in accordance with EN1026/EN12207
Class 4
Resistance to wind loads in accordance with EN122117EN12210
Class C4
Rain impermeability in accordance with EN1027/EN12208
Class E1500
Pneumatic gasket
Yes (standard)
Security Options
Burglary protection glass according to DIN EN 356
P8B
Burglary protection resistance classes according to DIN EN 1627
